Rear Bumper - Square

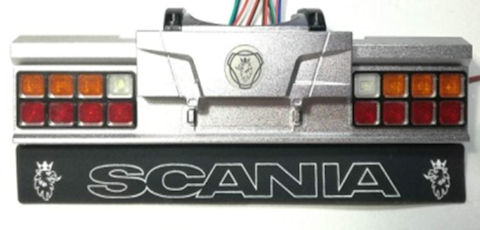

DMW 020 - Scania rear bumper

This is a CNC machined alloy bumper to fit any Tamiya truck.

The bumper comes complete with double row square style lights and pcb's. The supplied resistors MUST be placed in the -ve lines.

lights comprise combined side/brake/fog x 3 plus 2x reversing lights and indicators lamps.

The 4 wires black and green are brakes ( black is +ve!!) red and blue are ind - red +ve. no resistors needed
The two other pairs of wires red and black are reversing lamps red +ve no resistor needed.
mudflaps are available separately

NB. THESE ARE DESIGNED TO WORK FROM 5 VOLTS. IF YOU WANT TO USE HIGHER VOLTAGES THEN YOU WILL NEED TO ADD A RESISTOR IN EACH CIRCUIT
