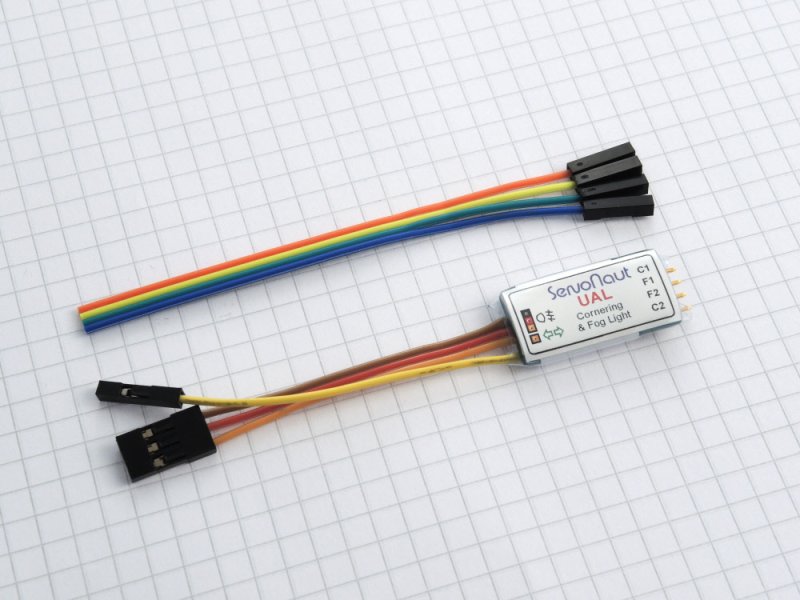

Lighting System, Corner, UAL

- fog and cornering light with 4 constant current outputs 20mA each
- universal for LEDs with or without series resistance or LED boards
- 2 outputs for cornering light/fog lights left/right
- 2 outputs for additional fog lamps front/back
- cornering light is controlled by steering channel
- possibly Y-cable needs to be ordered (for steering signal)
- short-term short-circuit proof at 5V up to 12V
- dimensions: 35 x 17 x 8 mm³
